Barn Door Glass

Apis produces tempered glass for barn doors, including clear tempered glass, frosted glass, and patterned glass.  We use silk screen printing technology,  environmentally friendly water-based ceramic ink, printed before the glass panel is tempered. Our barn door glass insert allows more light as well as privacy.

Silk Screen Printing Interior Door Glass

  • Technique:Silk Screen Printing before tempering , the ceramic  paint and interior door glass would melt together in the tempering process under 680℃~720℃.

    Features:
    * Scratch resistance
    * Resistance to weak acid and base
    * Uniform light transmittance
    * Ceramic paint does not fall off, long time color adhesion.
    * Easy to clean

Interior Door Glass Processing Description

Items Description Tolerance
Thickness 1# 3mm,4mm,5mm,6mm ±0.20 mm
Thickness 2# 8mm,10mm,12mm ±0.30 mm
Size 100-2200mm ±1mm
Hole Diameter 5mm-50mm +0.5mm
Corners R3mm-R50mm ±1 mm
Type Clear, Extra Clear, Tint N/A

Apis Frosted Glass & Patterned Glass Features

We use environmentally friendly water-based ink and screen printing technology to produce frosted glass and patterned glass. which is widely used as interior door glass.  its features: 1. Uniform transmittance; 2. Delicate and smooth feel ; 3. Environmental protection; 4. Anti-fingerprint; 5. Hydrophobic

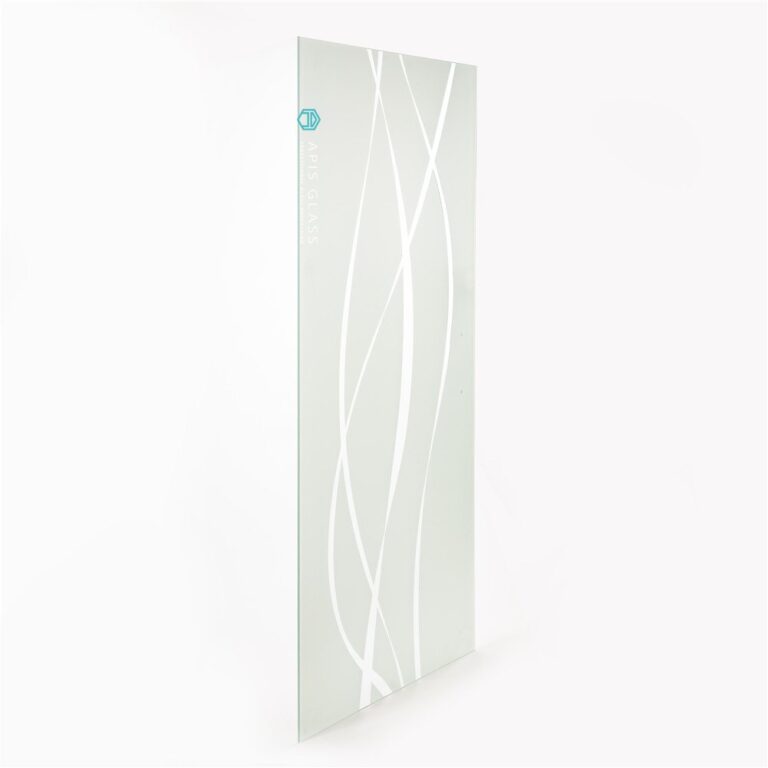

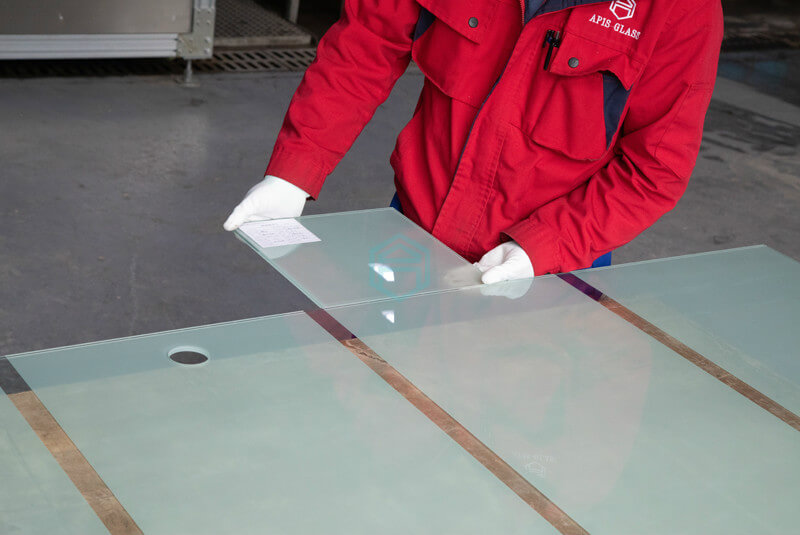

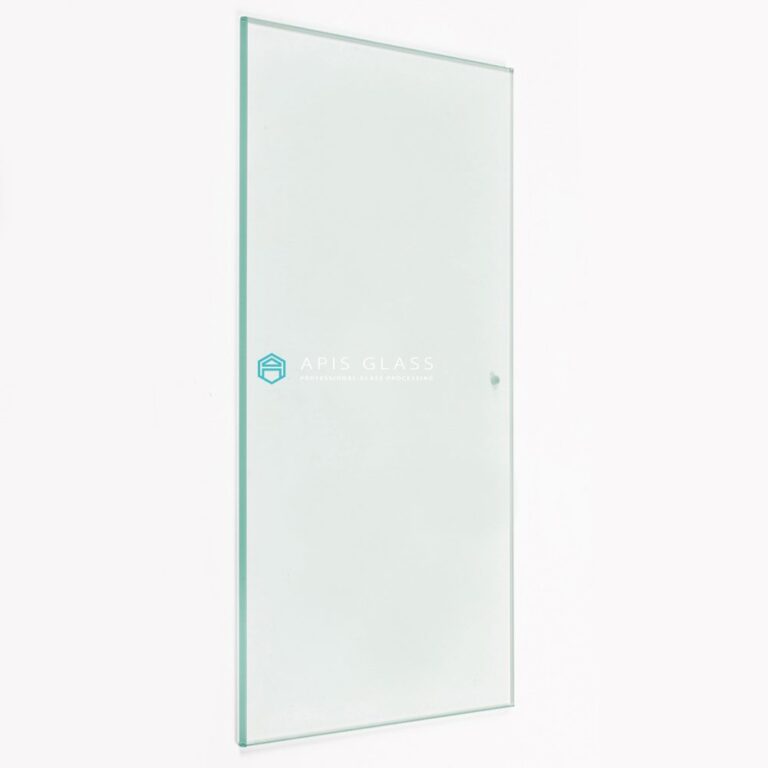

frosted glass barn door

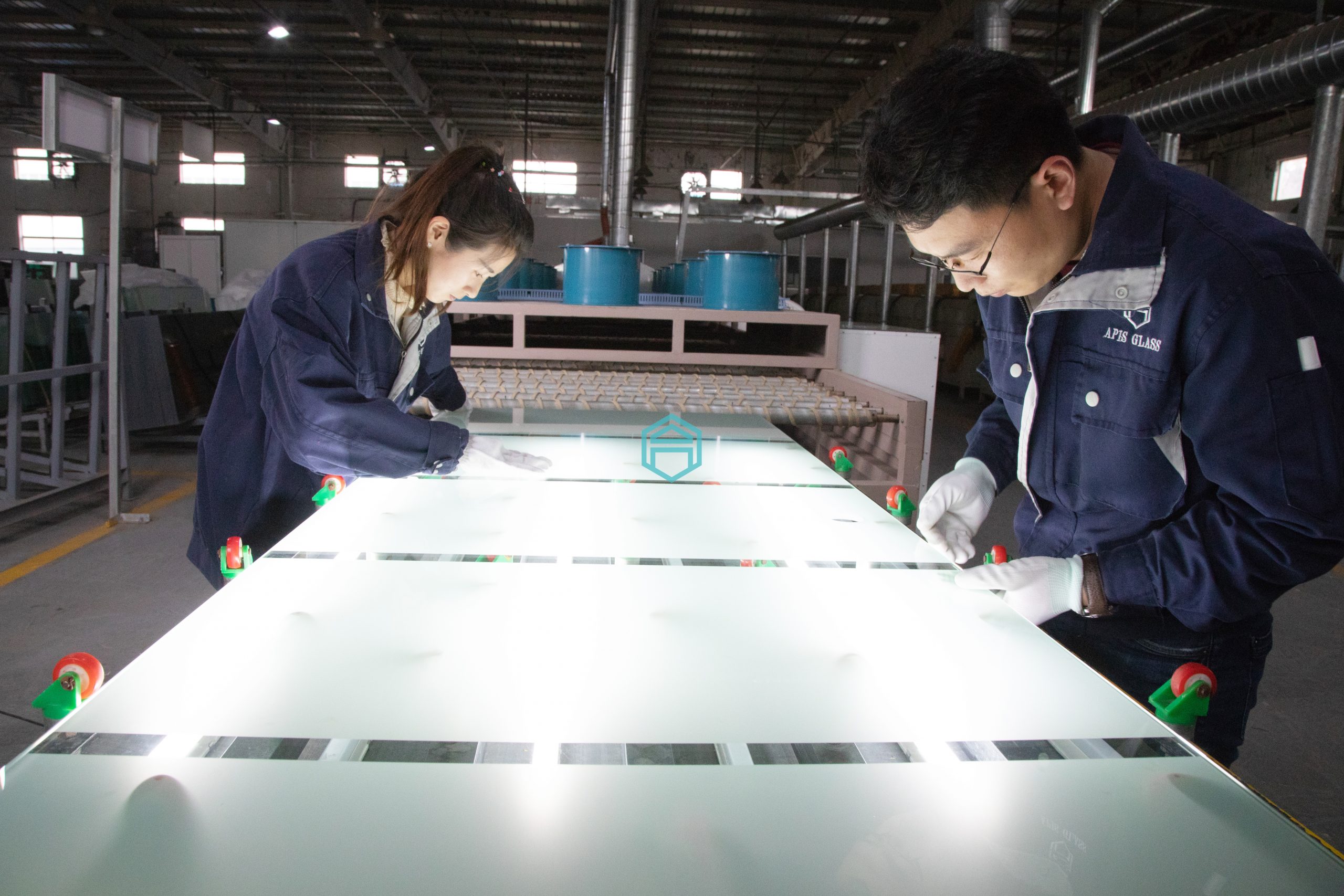

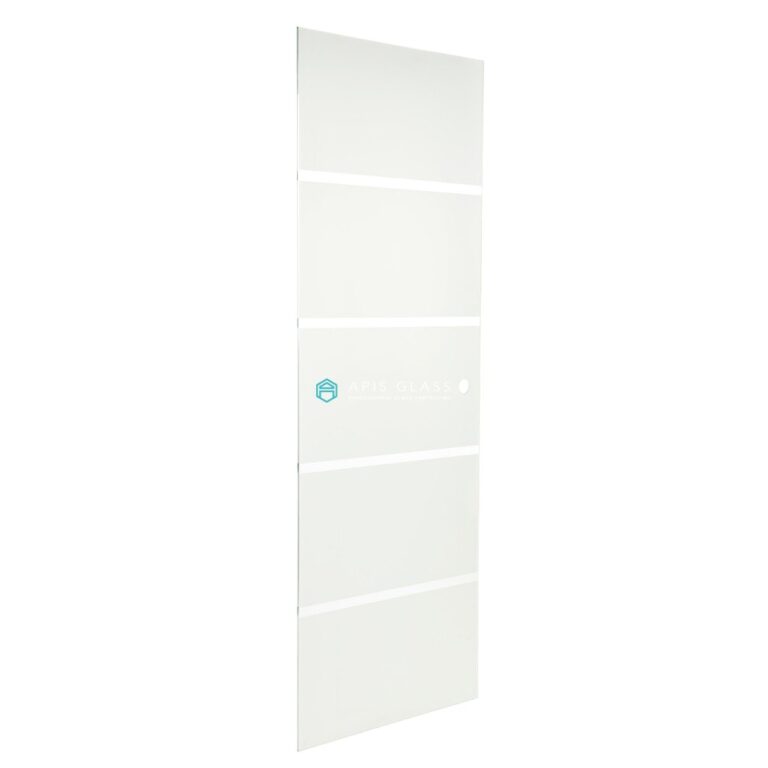

glass panel barn door

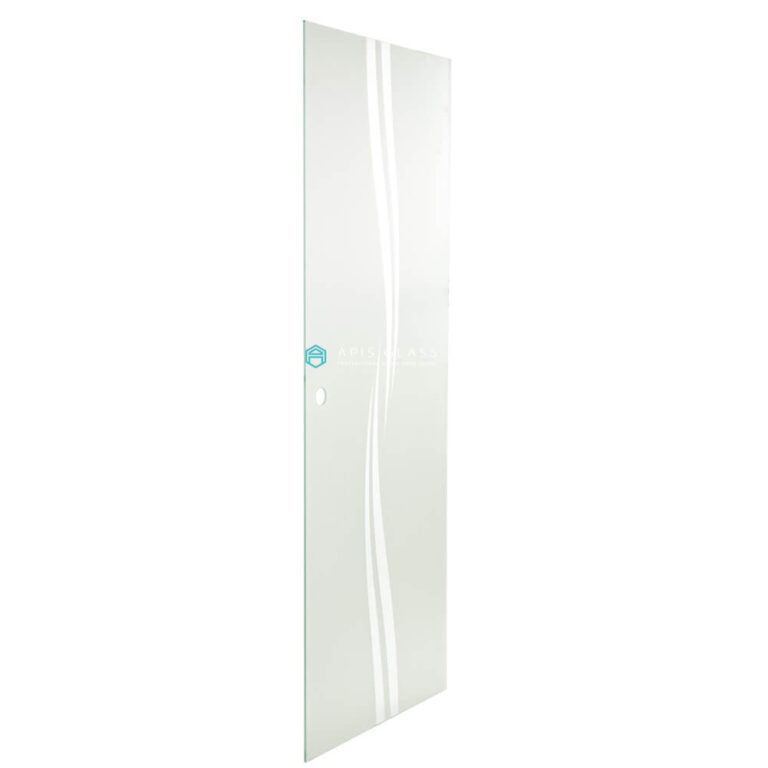

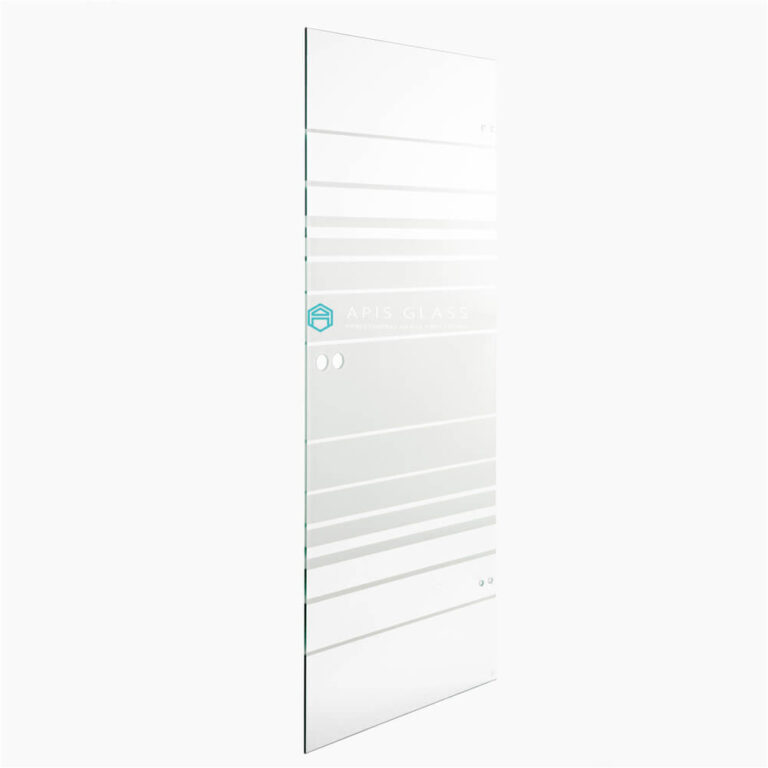

Print your unique pattern

With Apis Silk Screen Printing Technology, we can print any of your unique pattern on the door glass panel. Enable you to provide many different designs to meet any need and desires for perfect sliding barn doors.

Interior Door Glass Processing Details

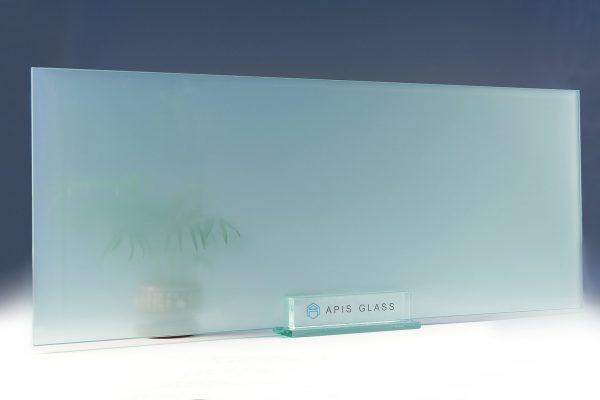

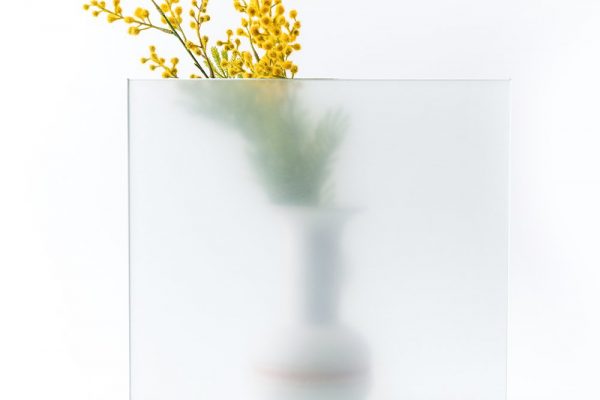

Satin Glass Effect

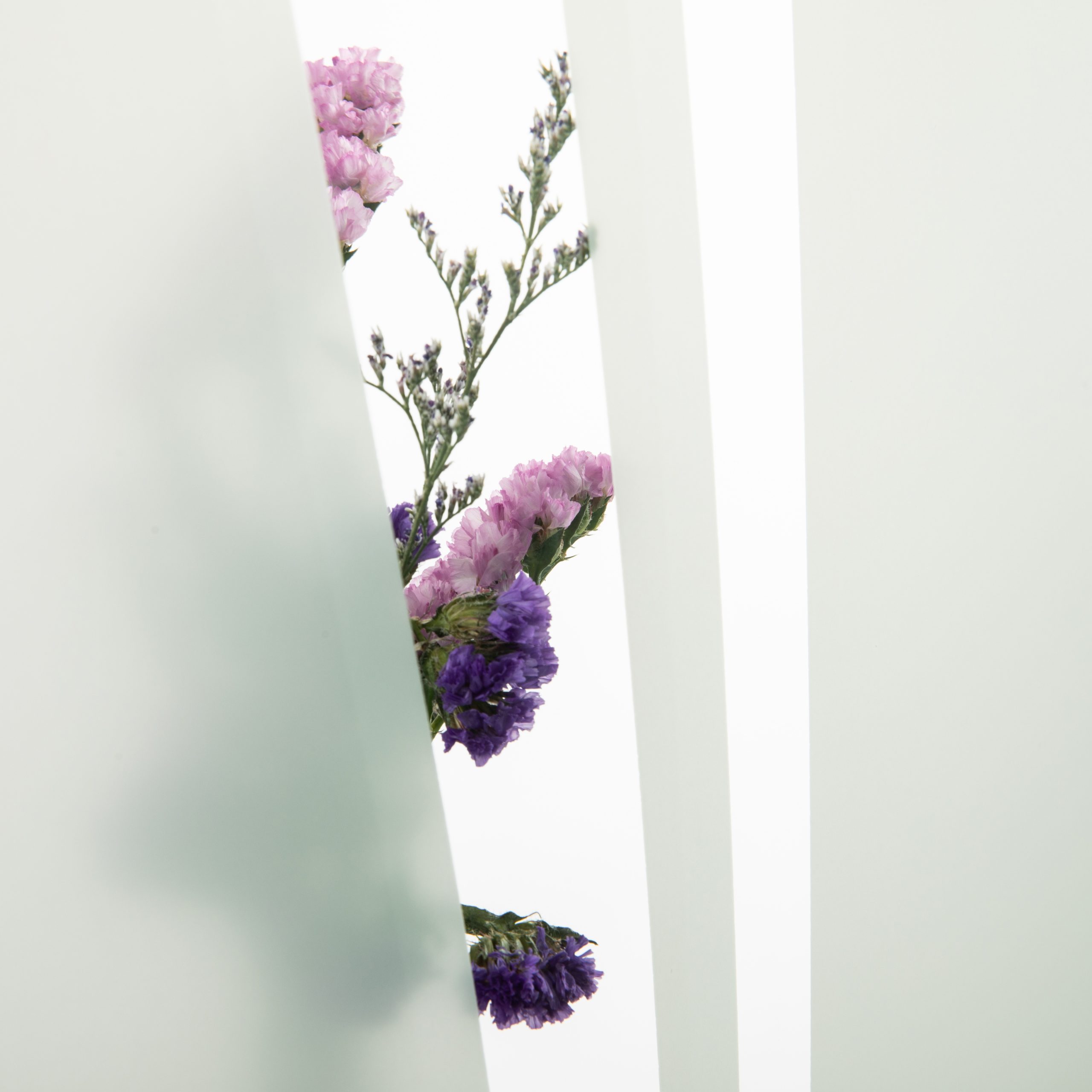

Apis printing door glass for barn doors usually is frosted or patterned. It has uniform transmittance, delicate and smooth feel like Satin Glass.

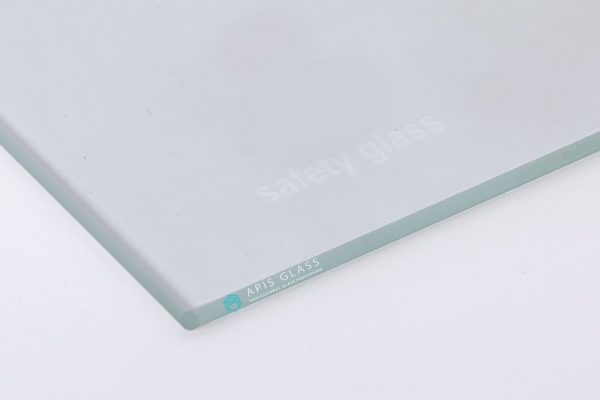

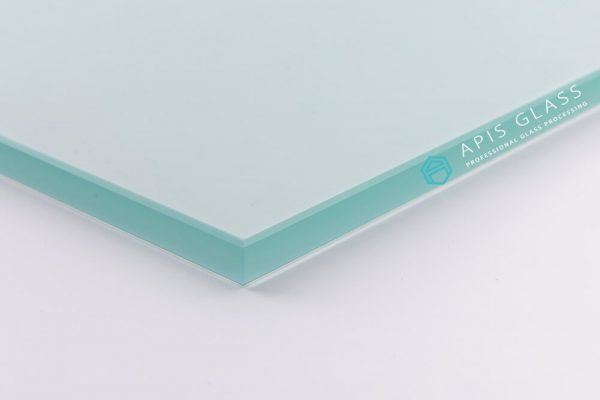

Glass Edge & Corner

For interior door glass, we can process both flat edge and pencil edge. The printing on the edge of the glass is very uniform, there is no pile of paint or blank.

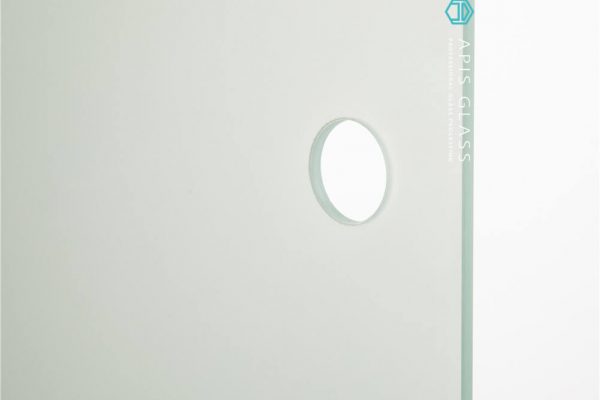

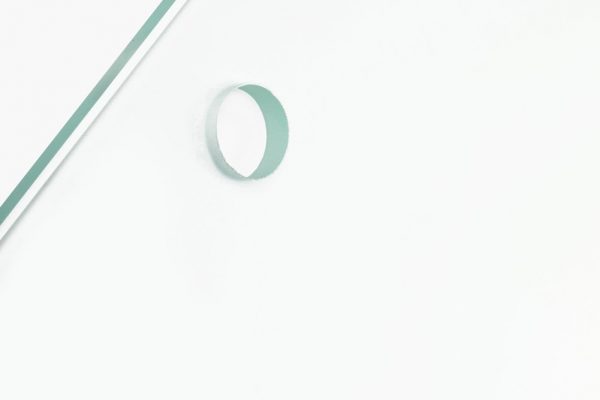

Glass Hole

We use automatic punching machine to drill holes on tempered glass for doors. It is with precise hole position.

Barn Door Glass Tempering

Apis barn door glass is tempered after printing. We have higher internal standards than the European CE standards and the US SGCC standards. We inspect the tempered glass on each shift: flatness, granularity, and record data;

  • Performance test: the strength and impact resistance of tempered glass;
  • Appearance inspection: every piece of glass is inspected when it is packed;

We pursue a range of granularity, which makes the stress of our tempered glass for doors uniform and effectively reduces spontaneous explosion.

Barn Door Glass Packaging

For Interior door glass, we use 20mm thick high-strength fumigation-free wooden boxes, each wooden box has a sufficient amount of desiccant, and sealed package. With 100mm height forklift hole, convenient for transportation; screw fixation, which is user-friendly and can quikly disassemble.

the packaging for interior door glass
wooden packing of door glass

Contact Us

We have an experienced and professional sales team to serve you and fully understand your needs. With our 16 years of valuable experience in tempered glass for interior doors, we can better help you and your brand.
