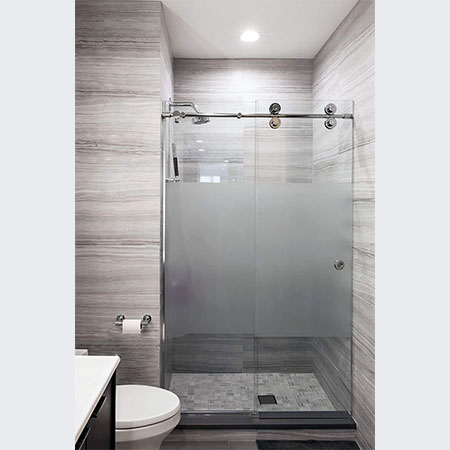

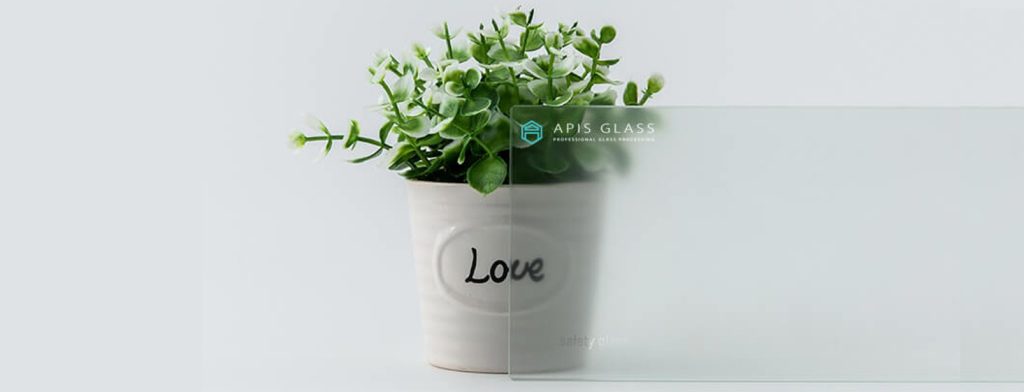

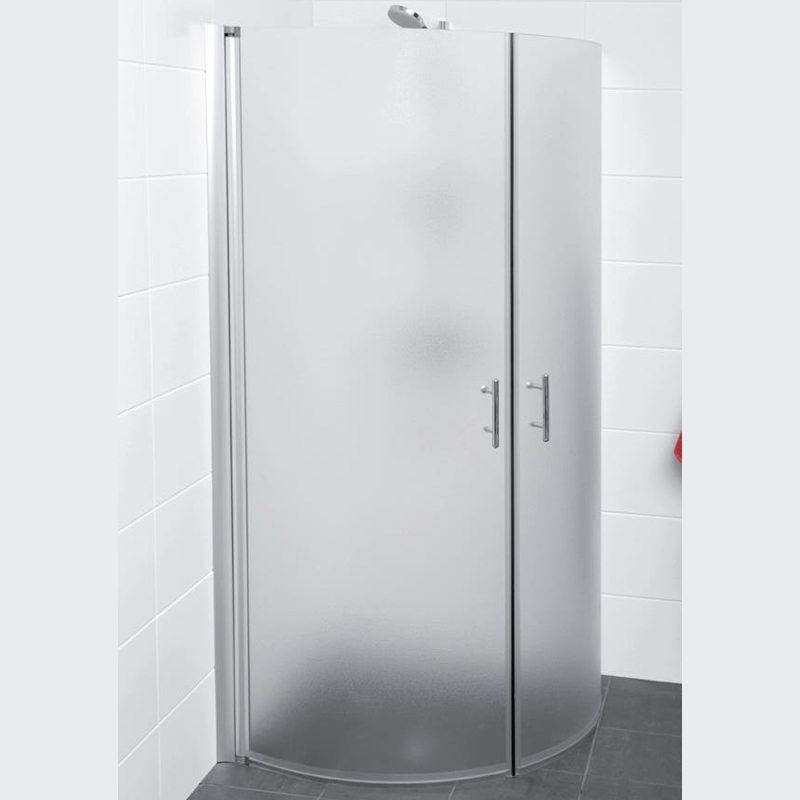

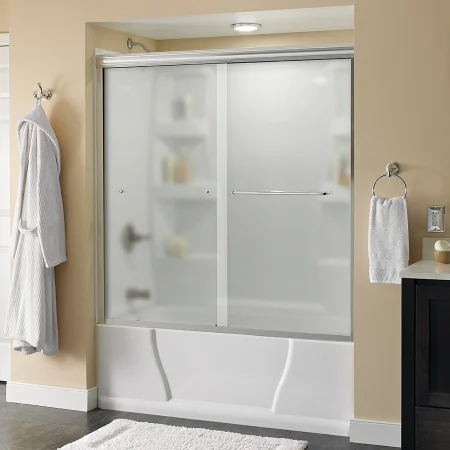

Frosted Glass panels for Shower Doors Shower Enclosures

Clear Tempered Glass, have valid CE and SGCC certificate.

Minimum Order Qty: 30 pcs per plywood crate.

Glass Edge: Polished flat edge Polished pencil edge

Glass Thickness: Available for 3/16”(5mm), 1/4”(6mm), 5/16″(8mm), 3/8″(10mm) Thick Glass

Customize Glass Size: The minimum width is 6″ and up to 72″ maximum. The maximum height will be 82″.

Logo can be printed

Provide Door to Door delivery service

Technical Parameters

Glass Thickness 3/16”(5mm), 1/4”(6mm), tolerance ±0.2mm
5/16”(8mm), 3/8”(10mm), tolerance ±0.3mm
Glass Type Clear glass
Size Tolerance ±0.5mm
Diagonal size 1mm
Edge Finishes Polished flat edge, Polished pencil edge
Corners Cutting 1-35mm, Radius 1-60mm,Tolerance±0.2mm
Cutouts Safety corners, tolerance 0, +1mm
Holes Diameter Ø 4- 60mm, Tolerance +0, -0.5mm
Overall Bow Tempered curvature not exceed 1.5mm within 1000mm
Roller Wave Tempered wave not exceed 0.15mm within 300mm
Tempering Particle Counts 45-80 Particles per 50×50 mm

Application

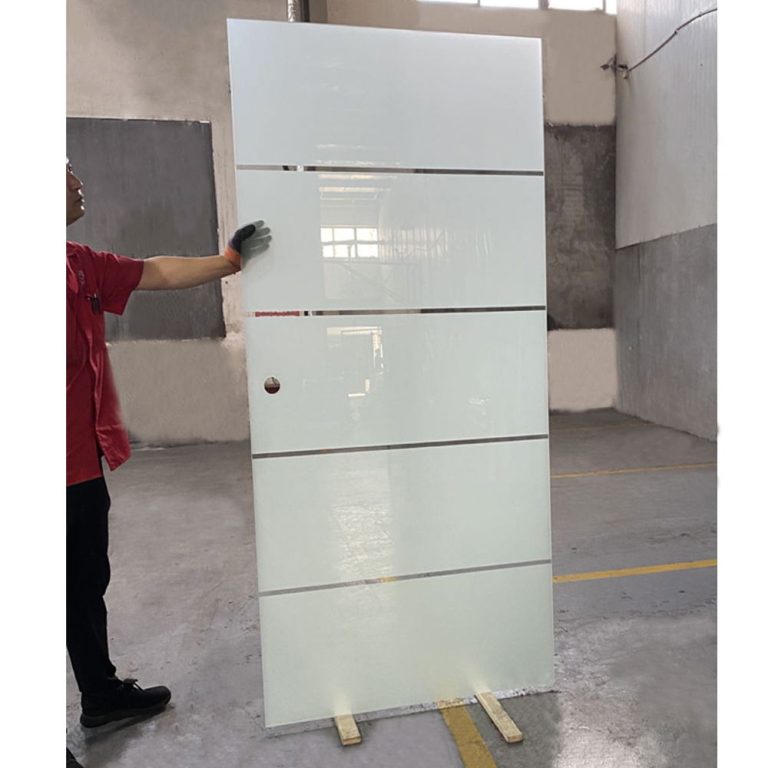

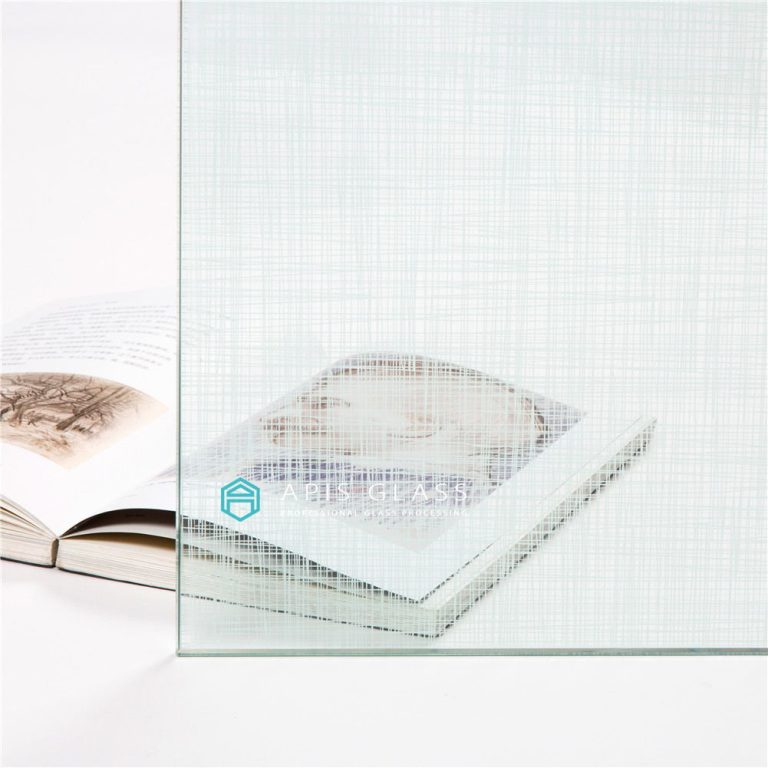

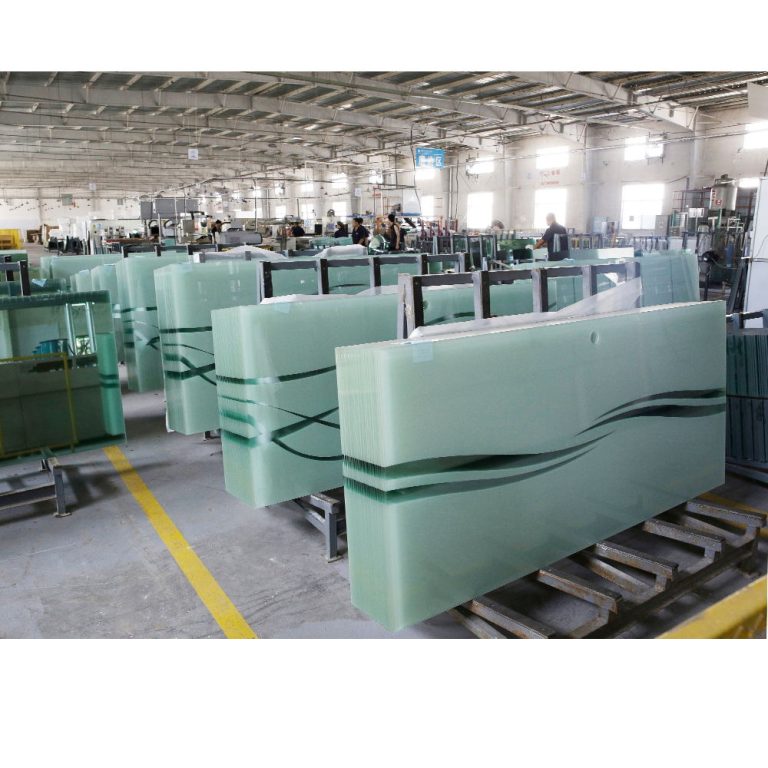

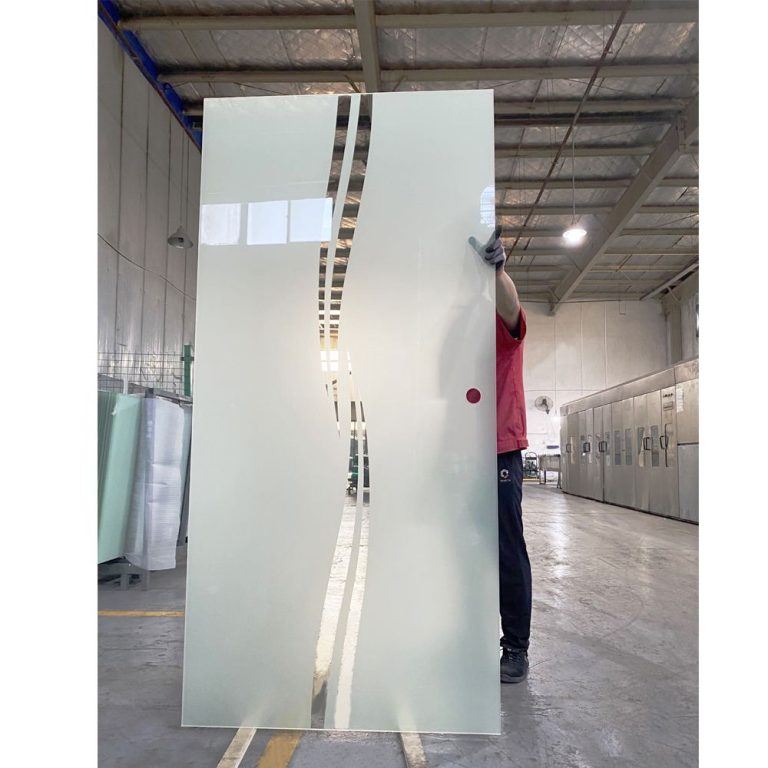

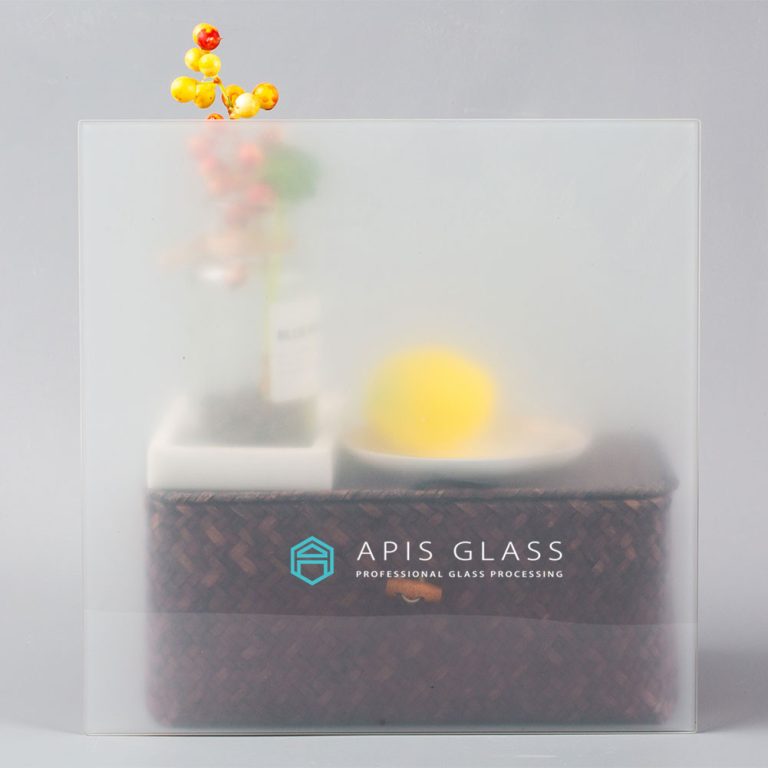

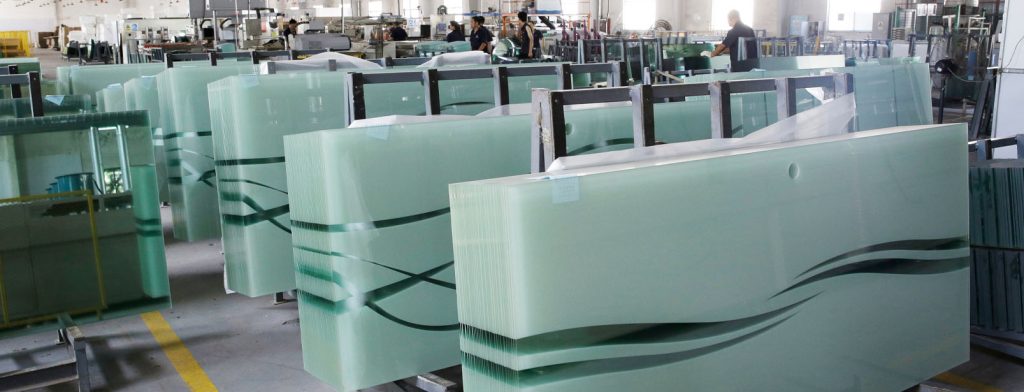

Back printed shower glass is a decorative glass for showers that have been designed to enhance the look of the bathroom.
Apis adopts screen printing technology and uses environmentally friendly lead-free high-temperature ceramic paint from the American brand Ferro.
The paint is printed before the glass is tempered. When the glass is tempered at a high temperature of 680°-720°, the paint will be firmly integrated with the glass, the paint layer will not fall off, and it is scratch-resistant, acid and alkali resistant.
Printing patterns and colors can be custom produced.

Package and Transportation

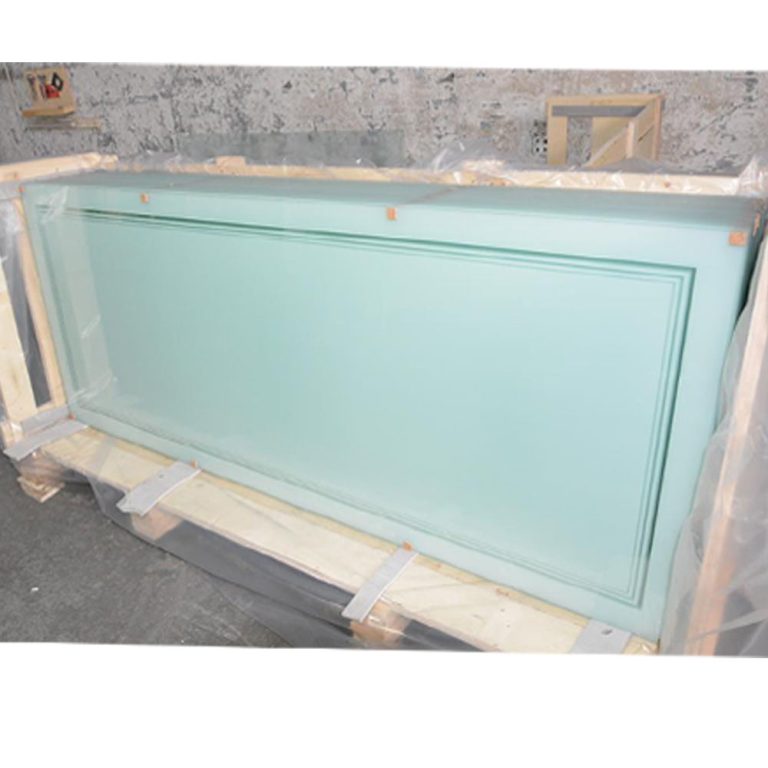

『Plywood crate package, corks between glass』

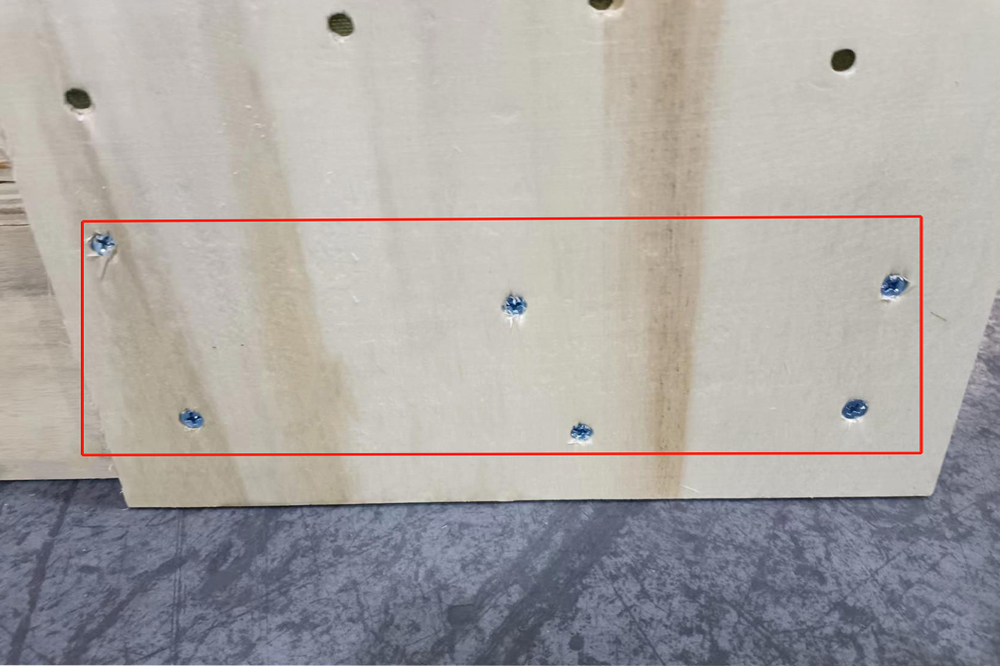

Plywood crate packaging is a unique and efficient way to package and protect tempered shower glass. It is a cost-effective solution that can be used to safely transport items while ensuring they remain undamaged during transit. Plywood crates are designed to be strong enough to withstand the rigors of shipping, providing an extra layer of protection for your valuable cargo.

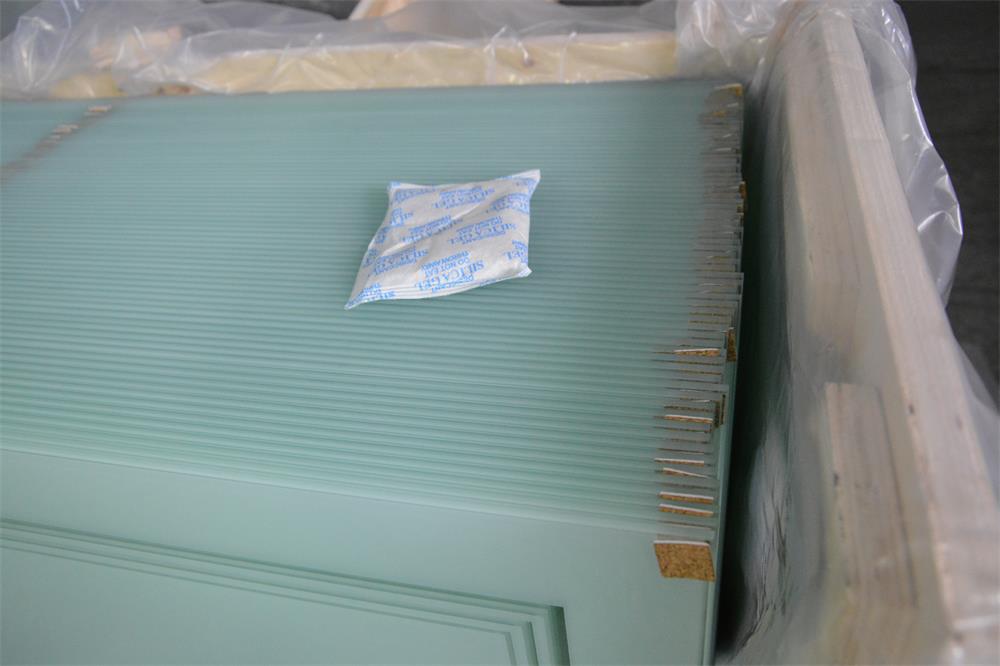

The glass is separated by a cork pad to prevent scratches between the glass and the gap between the glass can also prevent the glass from getting moldy

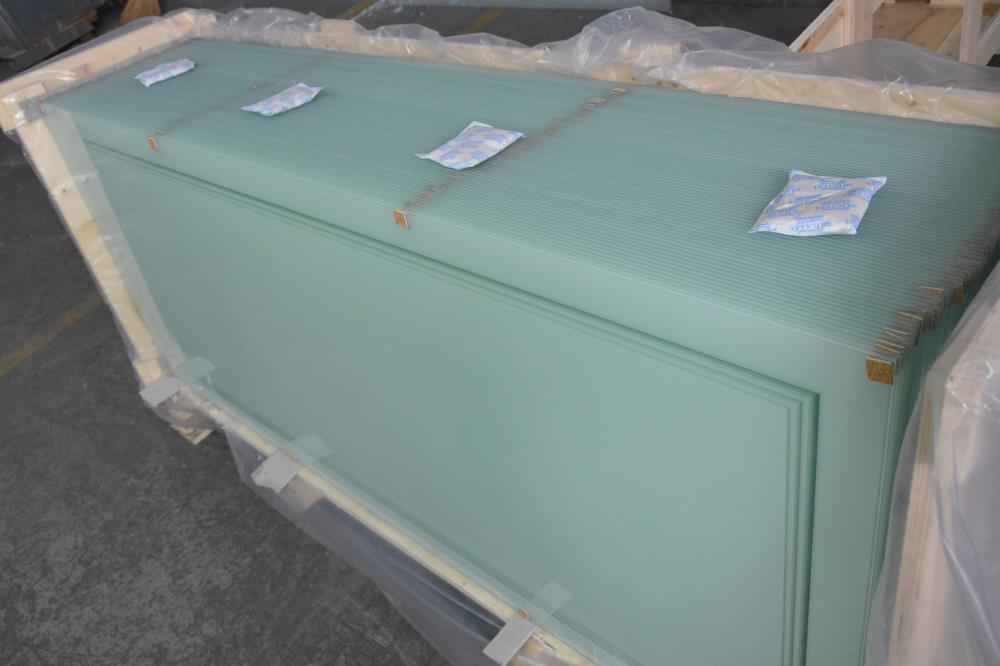

Desiccant is placed in the wooden box to prevent the glass from becoming moldy

The wooden box can be unpacked on 3 sides, which is convenient for use in the workshop

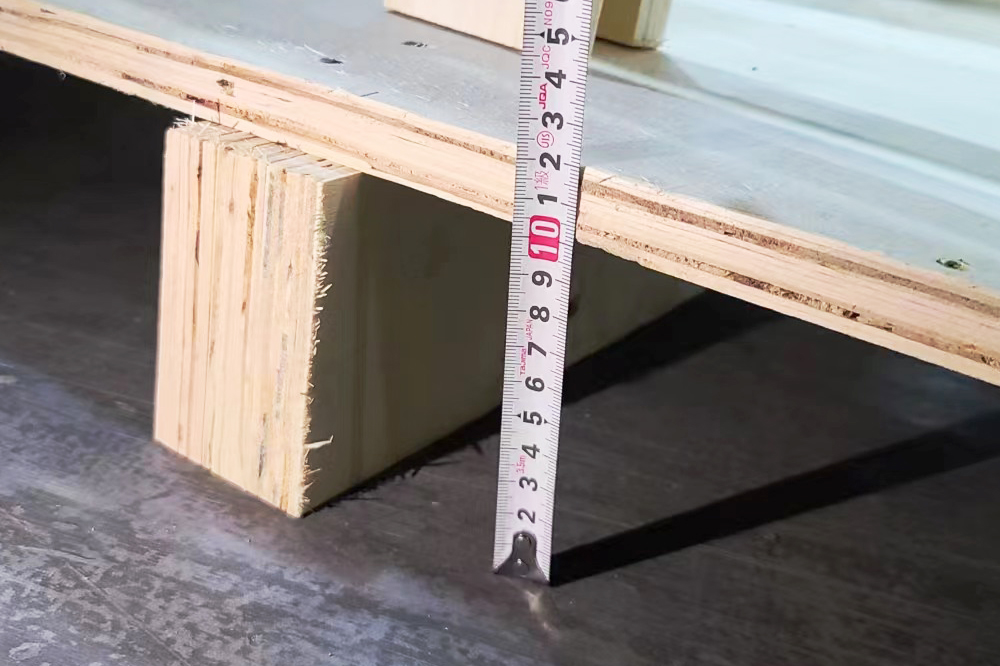

There is a 100mm wooden box Foot height, which is convenient for forklift handling

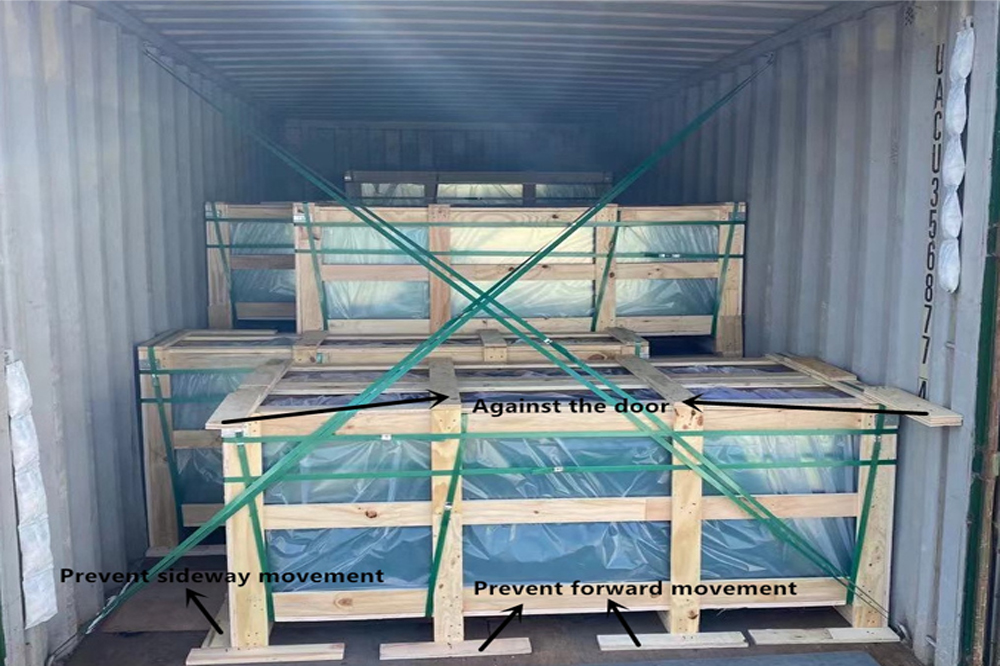

With scientific and reasonable reinforcement methods, the wooden crates are very stable in the container, and more than 440 containers are exported a year, and there has never been a transportation problem

Optional features

『Optional features of glass』

Apis is a tempered shower glass manufacturer in China with advanced and complete set of processing equipments.17 years of experience in production and export to Europe and the United States,Can well understand the needs of customers and provide customers with high-quality products.

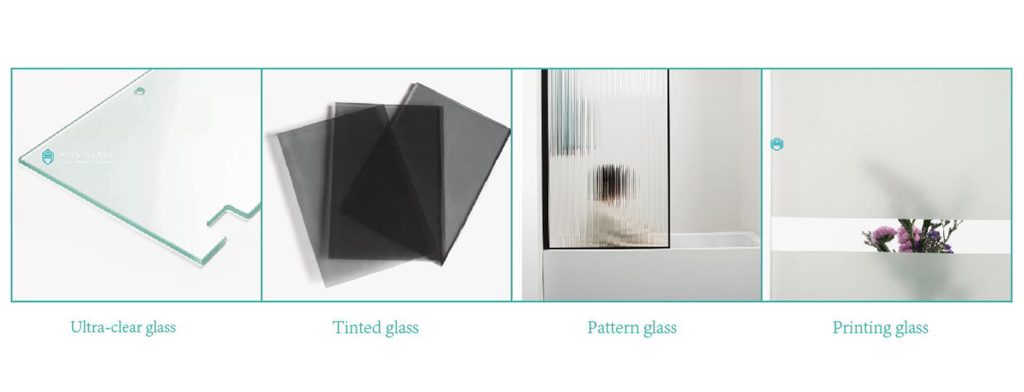

Glass types

Tinted glass, Ultra-clear, Printing glass, Pattern glass can be selected

Polished cutouts

Different shapes and sizes, can be customized

Polished handle holes

Different shapes and sizes, can be customized

Corner treatment

Safety corners, Cutting corners and Radius corners all available

If you are interested in any kind of optional features, welcome to contact us for a quotation.

『Optional features of packing』

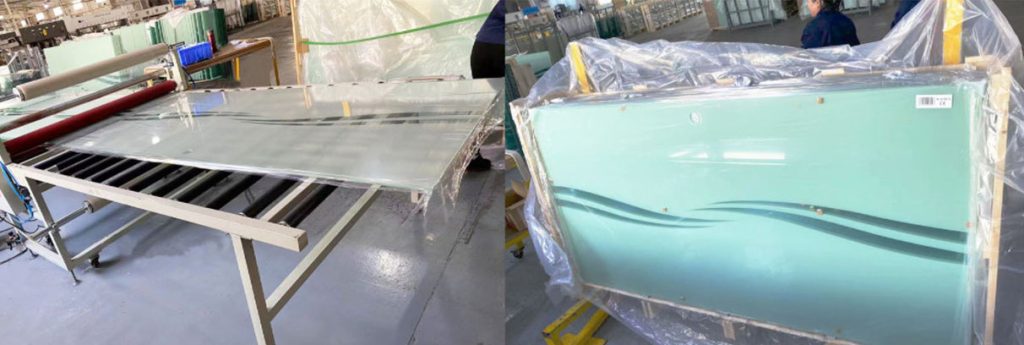

Another package with dust-free film

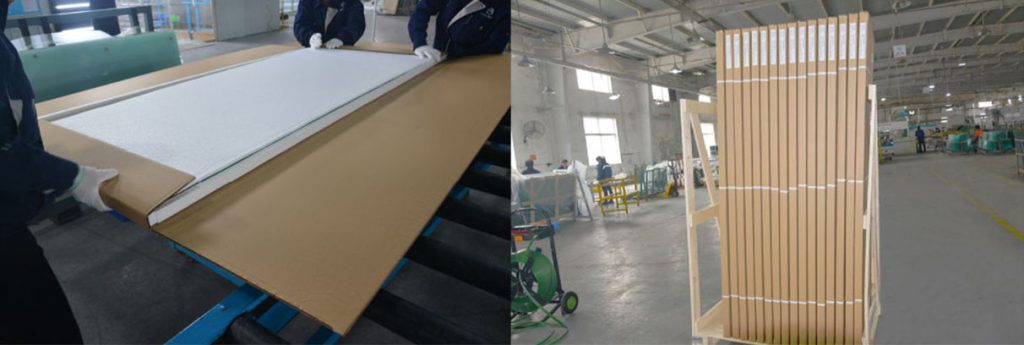

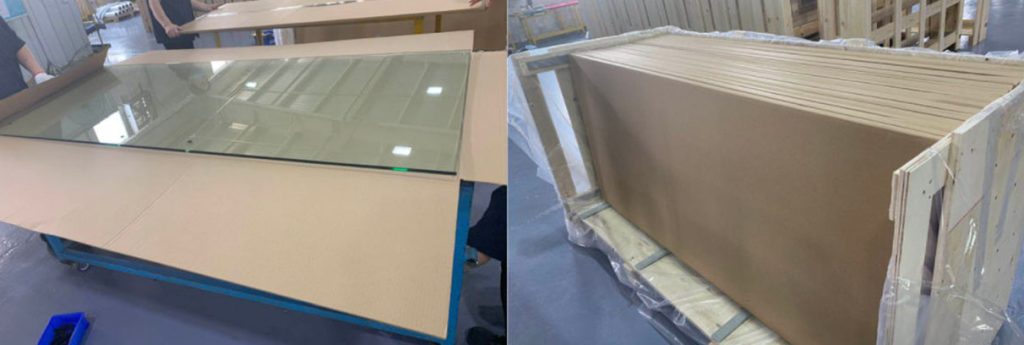

Carton box of glass packing

Carton package is available.
Each piece of glass is individually packed in a carton with or without foam padding can be selected.

If you are interested in this kind of packaging, welcome to contact us for a quotation.

Quality and Service

『Quality Warranty』

All good products are manufactured!
The quality of glass depends on the most basic details of every production process. Apis insists on making every piece of glass to ensure that every piece of glass received by customers is a qualified product.

Apis provide perfect packaging and container reinforcement to ensure that the shower doors arrive in your hands intact.
Apis promise to pay or replace defective or broken products, please check the products once received the container, and contact us immediately if there is any defect.

『Professional production and sales service team』

Apis carry out weekly production plan, Raw material purchasing and process production are in accordance with the weekly plan,
So the delivery date is very punctual and there will be no delay in delivery.

The sales understand products, familiar with import and export trade knowledge, provide assistance throughout the process until the customer receives the goods.
